Price:
$995 Frame and custom tuned rear shock
Frame Specifications and Geometry:
| Seat tube length (center to center) | 13.5" | 15" | 16.5" | 18" | 19.5" |
| Seat tube length (center to top) | 17" | 17.5" | 18.5" | 20" | 21.5" |
| Effective top tube length | 22" | 22.75" | 23.5" | 24" | 24.25" |
| Standover height (topped) | 29.6" | 30.4" | 31.3" | 32.3" | 33.4" |
| Head tube angle | 71° | 71° | 71.5° | 71.5° | 71.5° |
| Seat tube angle | 75° | 74° | 73° | 72.5° | 72° |
| Chainstay length | 16.8" | 16.8" | 16.8" | 16.8" | 16.8" |
| Head tube length | 4.3" | 4.3" | 4.7" | 5.5" | 6.3" |
| Standard shock rating (±30 lb. adjustablility) | 130 lb. | 150 lb. | 170 lb. | 190 lb. | 210 lb. |
Assembly Specifications:
Rear Spacing: 135mm
Seatpost Diameter: 31.6mm
Steerer Tube Diameter: 1 1/8"
Front Derailleur: 1 3/8", top pull
Fork Travel: 80-100mm
Bottom Bracket Width: 73mm
Bottom Bracket Height: 11.75"
What’s a Fango?

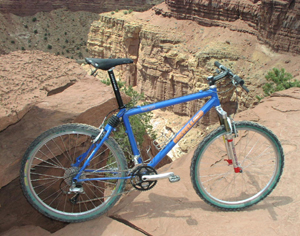

Fango is Italian slang for dirt. We love Fango. The Fango is a lightweight, aluminum softail designed for all around cross-country mountain biking. It features our patented pivotless Flat-Plate Chainstays and Critically Damped Elastomer Shock for the ultimate in an affordable, reliable, comfortable frame. You will love the Fango.
Why a Softail?
Many riders love the quick, agile performance feel of a hardtail, but are tired of feeling beat up after each ride. They know full-suspension can let you ride more comfortably, in greater control over rough terrain, but don’t like the drawbacks of added weight, increased maintenance, and power robbing bob while climbing, among others. We believe the softail construction is an excellent solution to meet our goals of building an affordable, comfortable, high-performance frame with none of these negative traits.
Why Aluminum?
The bike is affordable—half, or even one-third, of what a Titanium softail of the same weight and travel costs. That’s because it’s constructed of double-butted heat-treated aluminum. Aluminum is the material of choice when it comes to performance bang-for-the-buck, and our softail suspension eliminates the harsh ride of aluminum hardtails. It’s very lightweight too—just 4.4 pounds.
What’s the Secret?

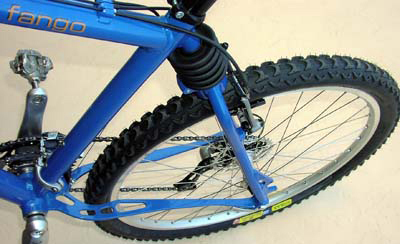

The secret to the Fango’s performance is found in the patented CDE shock absorber and Flat-Plate Chainstays. We developed the chainstays and shock as a way to add comfort and performance, while maintaining the lightweight strength, reliability, and clean aesthetics of the diamond frame configuration. The technologically advanced shock provides progressive travel with damping, and the chainstays contribute vertical compliance for that plush feeling ride.
Fango Features:
- 1.25 inches of pivotless, progressive rear wheel travel
- Only 4.4 pounds for frame with the rear shock. Same as Ti!
- Hand made in the good-ol’ USA
- International disc brake mount
- Heat-treated and custom extruded 6069 aluminum chainstay
- Custom-butted and heat-treated 6061 aluminum front triangle
- Castellano-designed Critically Damped Elastomer rear shock
- CDE shock is low maintenance and easily adjustable
- Reliable and plush two-stage travel
- Now available in luscious Fango Blue
- Choice of Sky Blue or Red Rock decals
- Custom shock rating available for 130-230 lb. rider
